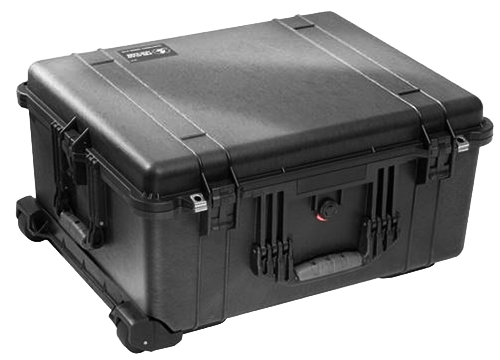

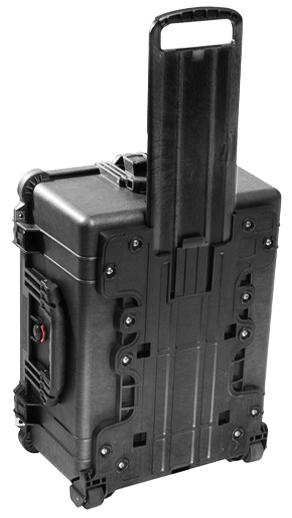

21.5″ Rugged Sunlight Readable LCD Integrated into a Pelican 1610 Protector Case

Sensitive equipment needs protection, and the Pelican™ Protector Case offers unparalleled stability. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware. Equipped with retractable extension trolley handle, strong polyurethane wheels with stainless steel bearings, automatic pressure equalization valve – balances interior pressure, keeps water out, and easy open double-throw latches.

With a robust design and state-of-the-art features, these ruggedized LCD monitors meets the demands of today’s harsh environment applications including ROV/Drones, First Responders, Military, Field Analysis, Offshore, Robotics, etc. While these display monitor/cases offer excellent mobility, we ensure that it can withstand the demanding conditions commonly encountered in these applications.
Multiple size LCD options, I/O configurations, and mounting possibilities.





Sunlight readable monitor for high visibility industrial use product feature badgeLCD screen product feature badgeLED screen product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconRugged Industrial Monitor product feature iconWide operational temperature safety range product feature iconIP65 Waterproof lcd monitor product feature badgeTouchscreen product feature badgeImpact Protection/Resistance LCD Monitor product feature iconEnergy Efficient LCD Monitor product feature icon
HDMI compatible product iconDisplay port product feature iconDVI compatible product iconVGA port product feature iconNTSC-PAL compatible product feature iconSDI video port compatible product feature icon

Technical Specifications

General

Model
A8104-215-1610
Display Size
21.5
Display Type
Long-Life Industrial Grade LCD
Backlight Technology

Solid State, Long-Life LED – CLICK HERE for more information

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Front Sealed Manual Full-Range Dimming Turn Potentiometer
Contrast Ratio
4300:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p) – True High-Definition
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 89° ~ 89° vertical, - 89 ~ 89 horizontal
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Optional Front User Membrane Keypad
Protective Window

10-Point Multi-Touch Projected Capacitive Touch Window (PCAP) or Protective Window

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Physical Attributes

Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
IP65 at LCD front bezel
Overall Dimensions
24.83 x 19.69 x 11.88 in (63.1 x 50 x 30.2 cm)
Weight
Configuration Dependent
Sealability
Extreme Anti-Shock and Anti-Vibration Design
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
2 Years

Environmental

Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-20°C to +70°C (158°F)
Storage Temperature
-20°C to +70°C (158°F)
Humidity
5% to 95% RH (non-condensing)
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Product Resources

Additional Add-On Options

Touch Screen Technology:

Multi-Touch Up to 10-Point PCAP

Or can be fitted with an Optical Grade Protective Impact Window





Various Color Cases Available:  Black (standard) or Desert Tan







Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, and/or NTSC/PAL

Can be setup for Hot-Toggle Selection Between Multiple Video Inputs

Extended Operational Temperature Ranges

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Custom Boot-Up Splash Screen with YOUR Logo

Private Labeling Services

Customization Services

Custom Video Modes
