Model SRD-PS-185 LCD monitor is a true daylight readable high brightness NEMA 4X (IP66) rated product and utilizes the latest 18.5″ 1920 x 1080 resolution TFT Flat Panels. AbraxSys has added a versatile Analog-Digital interface board, backlight inverter and OSD controls. All elements, including a toughened glass protective screen have been packaged in a compact, rugged metal housing with a gasket-sealed stainless steel front bezel. The result is a flexible Display Head, ready for integration as part of any system; as an analog monitor, or a touchscreen driven human-machine interface.

This industrial grade Sunlight Readable NEMA 4X IP66 LCD TFT monitor is designed for use throughout a wide range of harsh outdoor applications. These rugged daytime viewable LCD displays are rigorously tested to ensure compliance with various industry standards and are engineered to withstand the effects of severe environments such as water, dust and dirt intrusion. These products perform well beyond ordinary ‘commercial’ type monitors. AbraxSys’ high bright Sunlight Readable LCDs are ideal for use in any high ambient light condition, and will give you the intensity and brilliance your application requires.

3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP66 Waterproof protection rated product feature badgeNEMA4x protection rated product feature badgeLCD screen product feature badgeLED screen product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
DVI compatible product iconDisplay port product feature iconHDMI compatible product iconVGA port product feature iconNTSC-PAL compatible product feature iconSDI video port compatible product feature icon

Technical Specifications

General

Model
SRD-PS-185
Display Size
18.5"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1500 nits (cd/m2)
Contrast Ratio
1000:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p)
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 88° / 88° Vertical, - 88° / 88° Horizontal
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Physical Attributes

Front Bezel
Gasket-Sealed Stainless Steel
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless Mounting Studs, 1/2” Exposed Thread
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years

Environmental

Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-20°C to 70°C (-4°F to 158°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.
RoHS Compliant
Yes
Rating
NEMA 4X - IP66

Product Resources

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology



Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, HD-SDI, and/or NTSC-PAL

Custom Video Modes

Extended Operational Temperature Ranges

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel



Customization Services

Dimming Capabilities: User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

Conformal Coating of all Internal Circuit Boards

Private Labeling Services



Can’t find what you’re looking for?

Reach out to our team—we're here to help.

This field is for validation purposes and should be left unchanged.

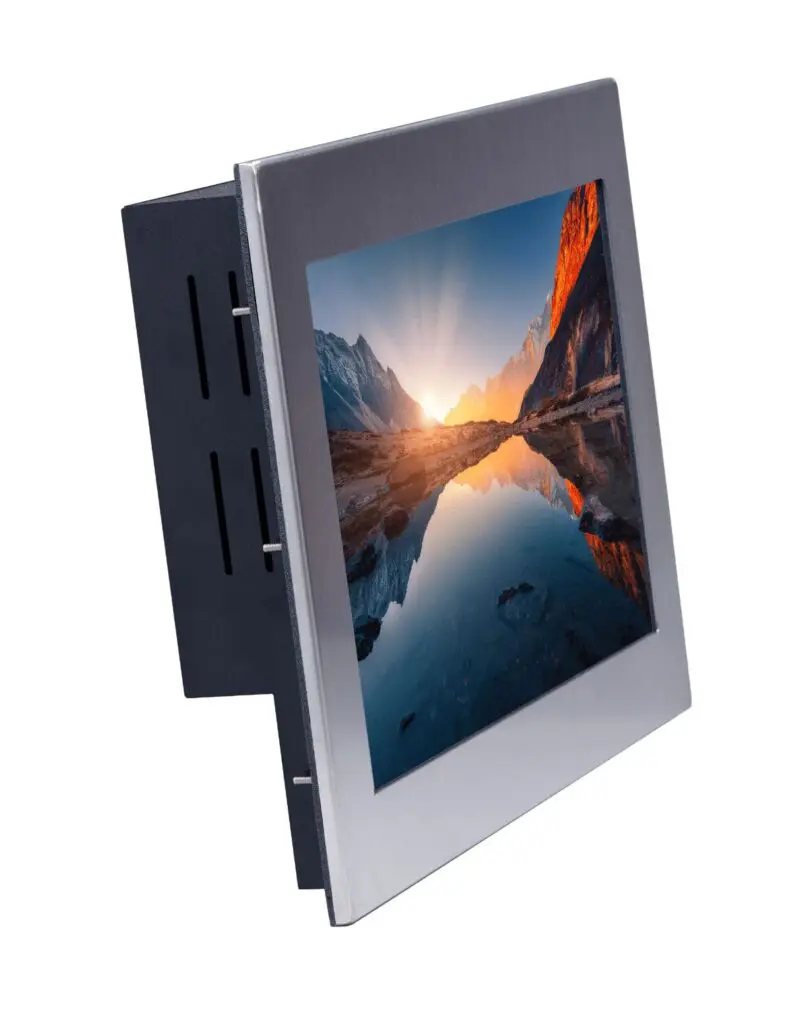

Front product photo of an AbraxSys Sunlight Readable LCD Monitor
