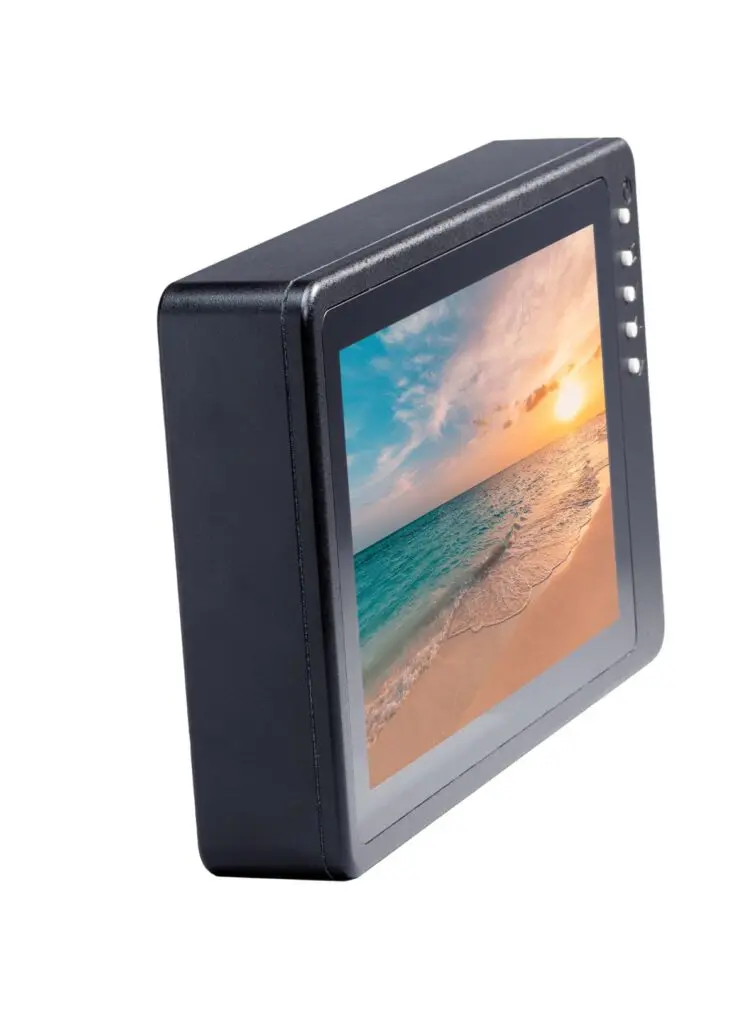

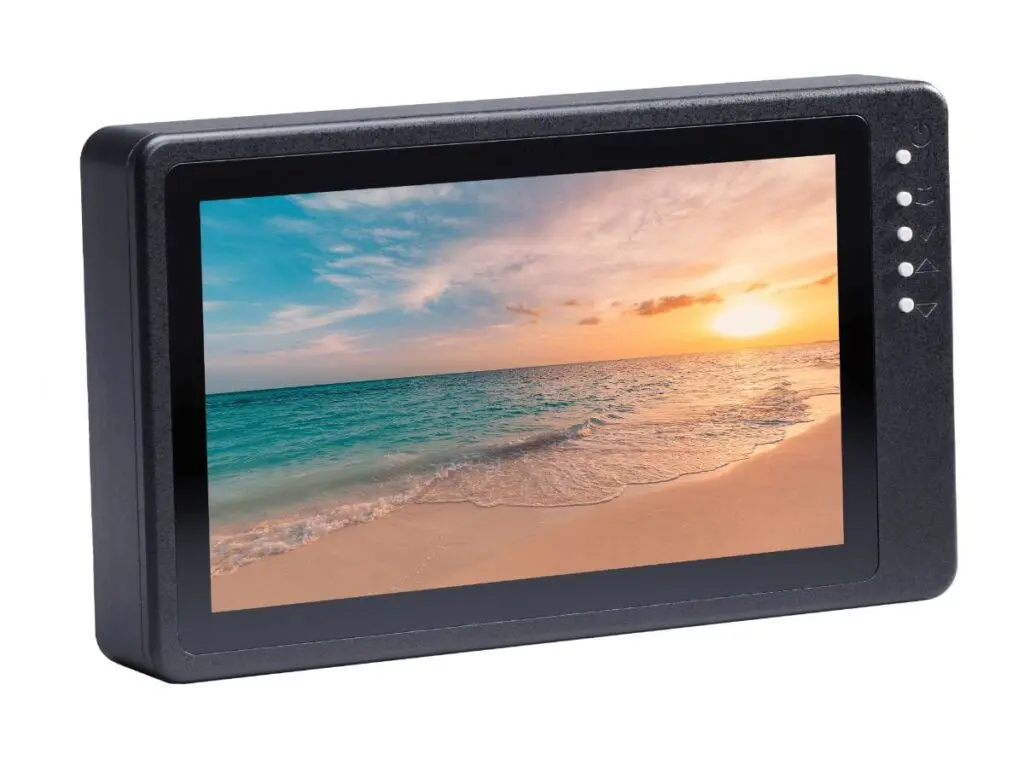

Model SRD-FVM-133 LCD monitor is an Ultra-Rugged Sunlight Readable 1500 nit High Brightness NEMA 4/4X (IP65/IP66) rated product and utilizes the latest 13.3″ TFT Flat Panels Full-High Definition 1920 x 1080. The enclosure is constructed of milled 6061 Grade Aluminum which has been Zinc-Chromate Dipped then treated with Corrosion Resistant Thermoset UV-stable Black Powder-Coating. AbraxSys has added a versatile Analog-Digital interface board, backlight inverter and OSD controls. All elements, including a toughened glass protective screen have been packaged in a compact, rugged metal housing. The result is a flexible Display Head, ready for integration as part of any system; as an analog monitor, or a touchscreen driven human-machine interface.

This rugged model offers exceptional shock and vibration safeguards and its housing is constructed of high grade aluminum which has been dipped in zinc-chromate and then finished with a resilient corrosive resistant thermal-set black powder-coating. This product is very ruggedly built, features long-life displays with no scheduled End Of Life. Incorporating the latest LCD and control electronics you are assured a display the will perform reliably in harsh industrial environments. Many configurations available.

3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconLCD screen product feature badgeVESA mount compatible LCD monitor product feature badgeLED screen product feature badgeRugged Industrial Monitor product feature iconWide operational temperature safety range product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
HDMI compatible product iconDVI compatible product iconDisplay port product feature iconVGA port product feature iconNTSC-PAL compatible product feature iconSDI video port compatible product feature icon

Technical Specifications

General

Model
SRD-FVM-133
Display Size
13.3"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
400 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
800:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p) – True High-Definition
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 89° ~ 89° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Multi-Functional User Keypad
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Physical Attributes

Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
VESA 100mm
Overall Dimensions
See Drawings
Cutout
See Drawings
Weight
See Drawings
Sealability
Fully Sealed
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years

Environmental

Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 70°C (-22°F to 158°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 12 / IP52

Product Resources

Additional Add-On Options

Touch Screen Technology:
(USB or Serial):  Links to the various touch technologies:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, HD-SDI, and/or NTSC-PAL

Dimming Capabilities: User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

Custom Video Modes

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Extended Operational Temperature Ranges
